PoE Switch,5-Port 10/100/1000Mbps Unmanaged PoE Switch (4-Port PoE)

Description

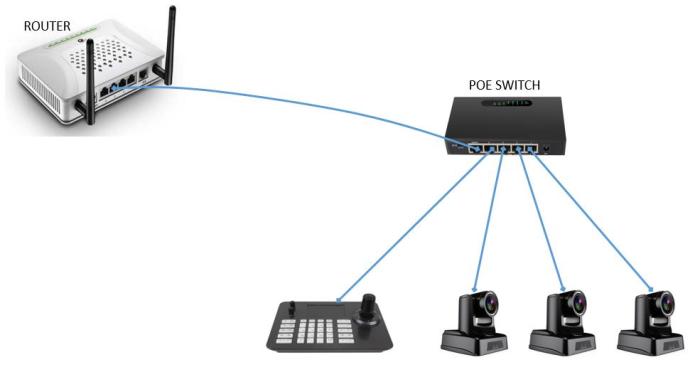

TXE038 is a 5-port 10/100/1000Mbps Desktop PoE Switch provides the seamless network connection. These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. VLAN isolation to meet security monitoring requirements. Independent uplink port can ensure that the port can easily cope with sudden high traffic, and ensure that the upstream channel is unobstructed.

     TXE038 is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the 5-port 10/100/1000Mbps Desktop PoE Switch is a great selection for expanding your home or office network.

Features

• Comply with IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az、IEEE802.1q Ethernet standards;
• Supports IEEE802.3af、IEEE802.3at PoE standards;
• Supports PoE power up to 30W for each PoE port, all power up to 60W;
• VLAN isolation to meet security monitoring requirements;
• Support 5 x10/100/1000Mbps Auto-negotiation RJ45 ports with 4 port PoE function  (port1-port4);
• Independent uplink port can ensure that the port can easily cope with sudden high traffic, and ensure that the upstream channel is unobstructed;
• Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode;
• 2K entry MAC address table of the switch with auto-learning and auto-aging;

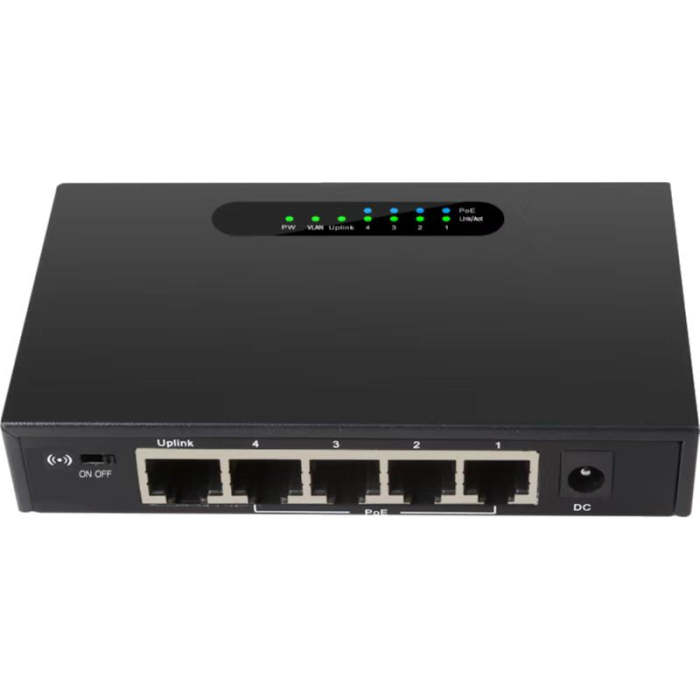

• LED indicators for monitoring Port Link / Activity;
• External power supply, exquisite design, suitable for desktop 、Wall hanging install and use.

Characteristics

• Complied with IEEE802.3at backward compatibility IEEE802.3af
• Comply with IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az、IEEE802.1q standards
• VLAN isolation to meet security monitoring requirements
• Supports PoE power up to 30W for each PoE port, total 60W for all PoE ports
• Switching Capacity 10Gbps
• Adopt the store - forwarding mode

Specification
