Detail

Product Name: Used Camera - 95% New - SMTAV PTZ Camera with 3G-SDI,HDMI and IP Streaming Outputs,20X Optical Zoom,Broadcast Live Streaming Camera for Conference,Events,Church and School etc (20X-White)
Item NO.: B094Q6L7K7
Weight: 0 kg = 0.0000 lb = 0.0000 oz
Category: PTZ CAMERAS > SDI CAMERAS > 20X
Brand: SMTAV
Creation Time: 2021-07-29

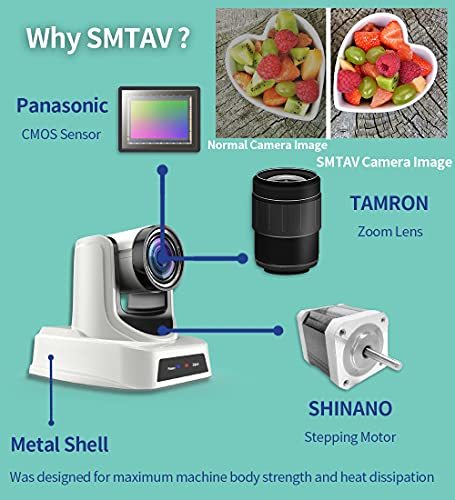

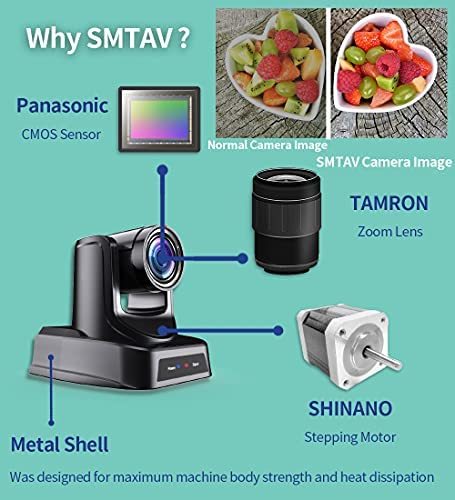

Apply Panasonic's 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 20x + 16X Zoom.The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well.

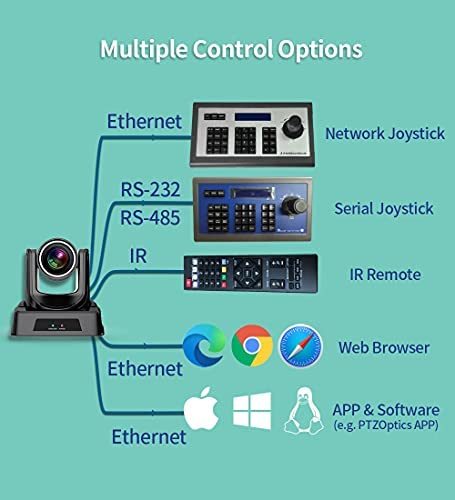

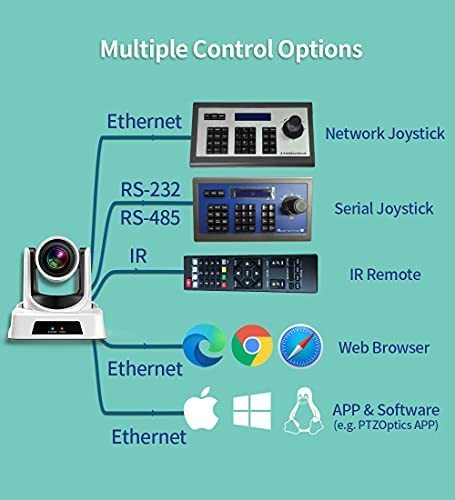

As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.

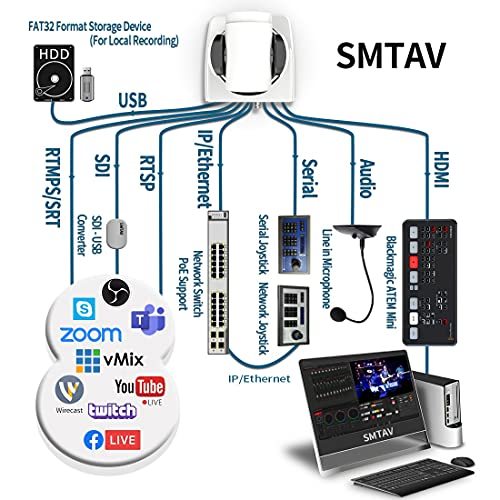

Is a Full HD professional live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support PoE(802.3af) and RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets.For simplicity,we also offer free app to help you setting the camera.

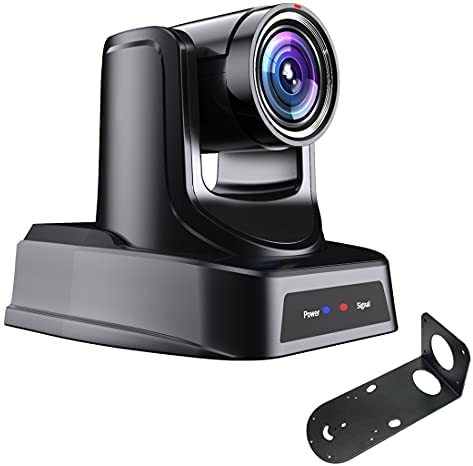

What can you get.20X Full HD PTZ Camera,Power adapter,IR remote control,user manual,Serial control cable,wall mount bracket.

PTZ Camera with 3G-SDI,HDMI and IP Streaming Outputs,20X + 16x Zoom

SMTAV BA20L is a new design professional Full HD Broadcast and Conference PTZ Camera.It has 20X + 16X Zoom and 60.7 degree FOV with Panasonic's 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens.Supports 3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm allows it to keep the picture clean and clear in an Low-light environment of 0.5 Lux.Support TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Is a ideal use for Live Streaming,Broadcast,Conference,Events,Church and School etc

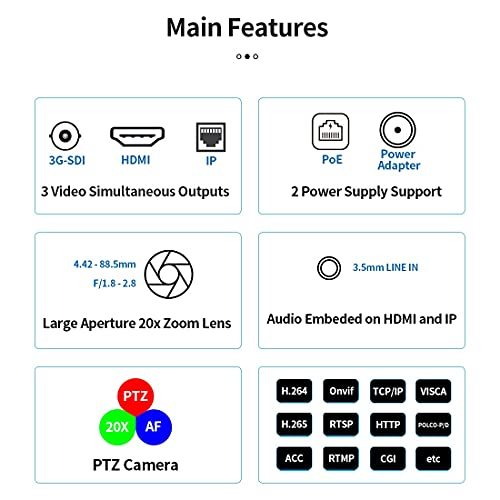

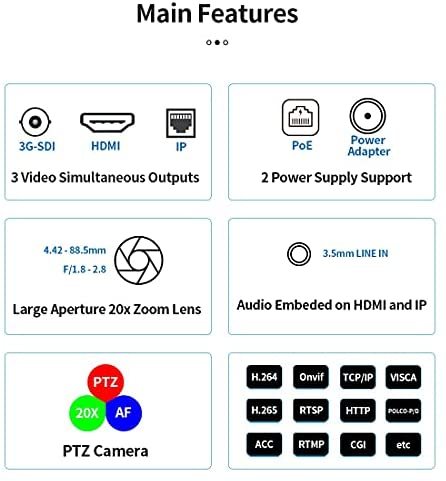

3 Simultaneous HD Video Outputs Simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG/H.264/H.265)	Live Streaming Camera It supports H.264/H.265 video encoding and RTSP/RTMP protocols, can easily cope with various live steaming challenges	Multiple Protocol Support Standard PoE/Onvif/VISCA/Pelco-D/Pelco-P/CGI/HTTP and etc protocols Support. Easily controlled by IR controller, Network or serial port.

VIDEO SPECIFICATIONS

Video Output Interface	3G-SDI, HDMI, CVBS, IP(RJ45)
Video Format	HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 SD: 480i, 576i
Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Lens	20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Scanning Mode	Progressive
Focus Mode	Auto, Manual
Electronic Shutter	1/30s ~ 1/10000s
Minimum Illumination	0.5 Lux at F1.8, AGC ON

White Balance	Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
SNR	≥55dB
Angle of View	Horizontal: 60.7° ~ 3.36°, Vertical: 34.1° ~ 1.89°
H & V Flip	Support
Image Freeze	Support
Video Compression	H.265/H.264/MJEPG

PTZ SPECIFICATIONS

Rotation Range	Horizontal: -170° ~ +170°, Vertical: -30° ~ +90°
Speed Range	Pan: 1.7° ~ 100°/s, Tilt: 1.7° ~ 69.9°/s
Preset function	Support
Number of Presets	255

Preset Accuracy	0.1°
Support Protocol Type	VISCA over IP, VISCA, Pelco-D, Pelco-P, CGI, HTTP, Onvif

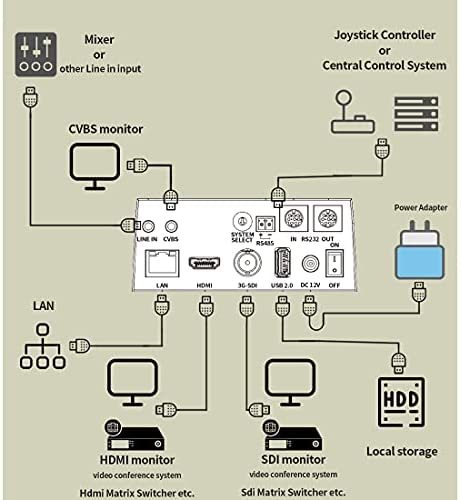

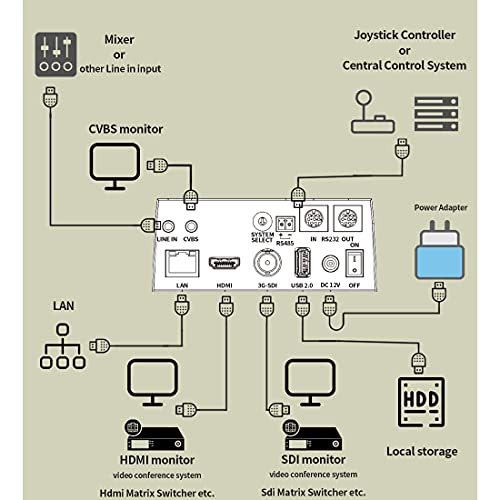

Control Signal Interface	1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN), RJ45(IP Control)

OTHER SPECIFICATIONS

Power Jack	JEITA type (DC IN 12V)
Power Consumption	12W (Max)
PoE	Support(802.3af)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)

Local Storage	Support(Flash disk via USB, FAT32 format)
Audio Interface	1x3.5mm Audio Interface,Line In
Audio Compression	AAC
MTBF	>30000h


	20x/30x NDI PTZ Camera	10x USB PTZ Camera	20x/30x PTZ Camera	20x/30x NDI PTZ Camera	12x USB PTZ Camera
NDI Support	✓			✓
Zoom	20X+16X/30X+8X	10X+16X	20X+16X/30X+8X	20X+16X/30X+8X	12X+16X
Video Output Interface	3G-SDI,HDMI,IP,NDI	USB2.0	3G-SDI,HDMI,IP	3G-SDI,HDMI,IP,NDI	USB3.0
MAX Video Output	1080p@60	1080p@30	1080p@60	1080p@60	1080p@60
Angle of View	60.7°	60.7°	60.7°	60.7°	72.5°
PTZ	High Speed PTZ	High Speed PTZ	High Speed PTZ	High Speed PTZ	High Speed PTZ
Voice Pickup Distance					5m
Features	NDI Support,20x optical Zoom,Telephoto and large aperture.3G-SDI,HDMI,IP Outputs.H.265,UVC,Onvif,VISCA,RTSP,RTMP,HTTP,CGI,etc.	10x optical Zoom,Telephoto and large aperture,H.264,UVC,VISCA	20x optical Zoom,Telephoto and large aperture.3G-SDI,HDMI,IP Outputs.H.265,UVC,Onvif,VISCA,RTSP,RTMP,HTTP,CGI,etc.	NDI Support,20x optical Zoom,Telephoto and large aperture.3G-SDI,HDMI,IP Outputs.H.265,UVC,Onvif,VISCA,RTSP,RTMP,HTTP,CGI,etc.	12x optical Zoom,60FPS,Telephoto and large aperture,H.264,UVC,VISCA
